Item No :

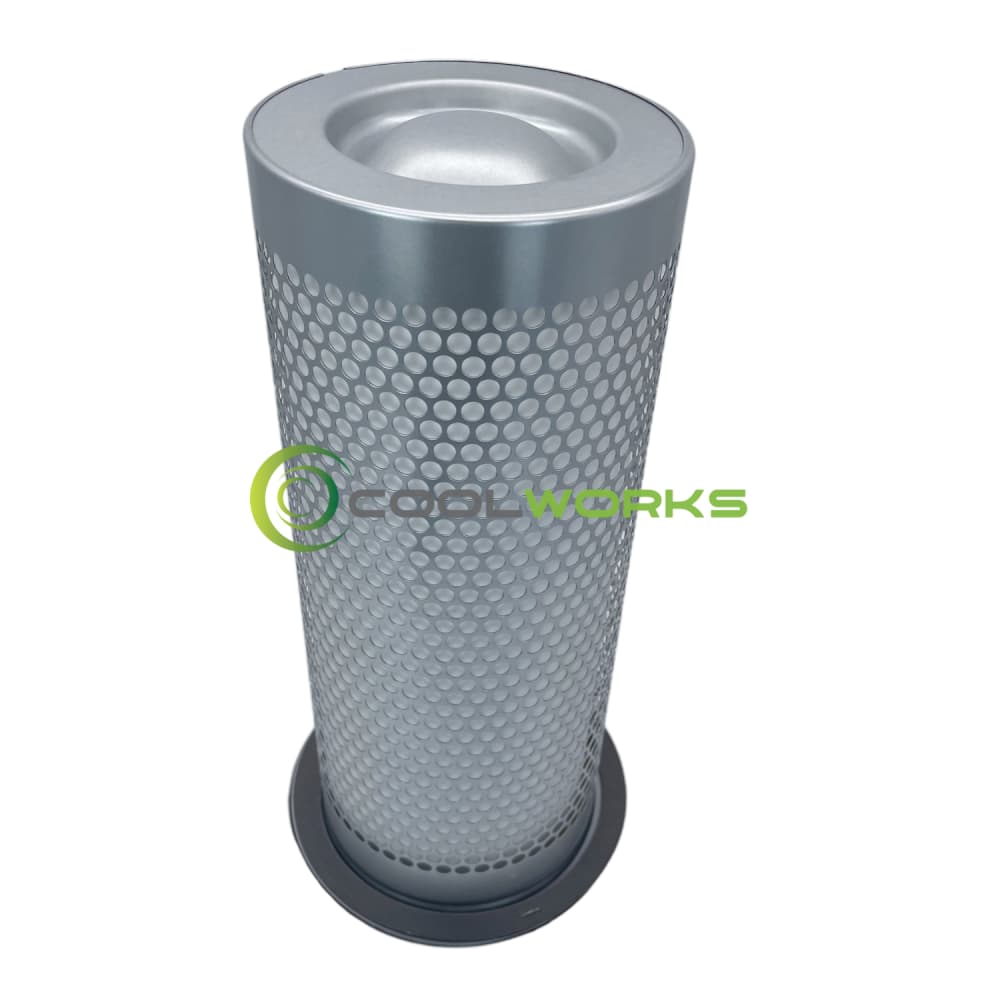

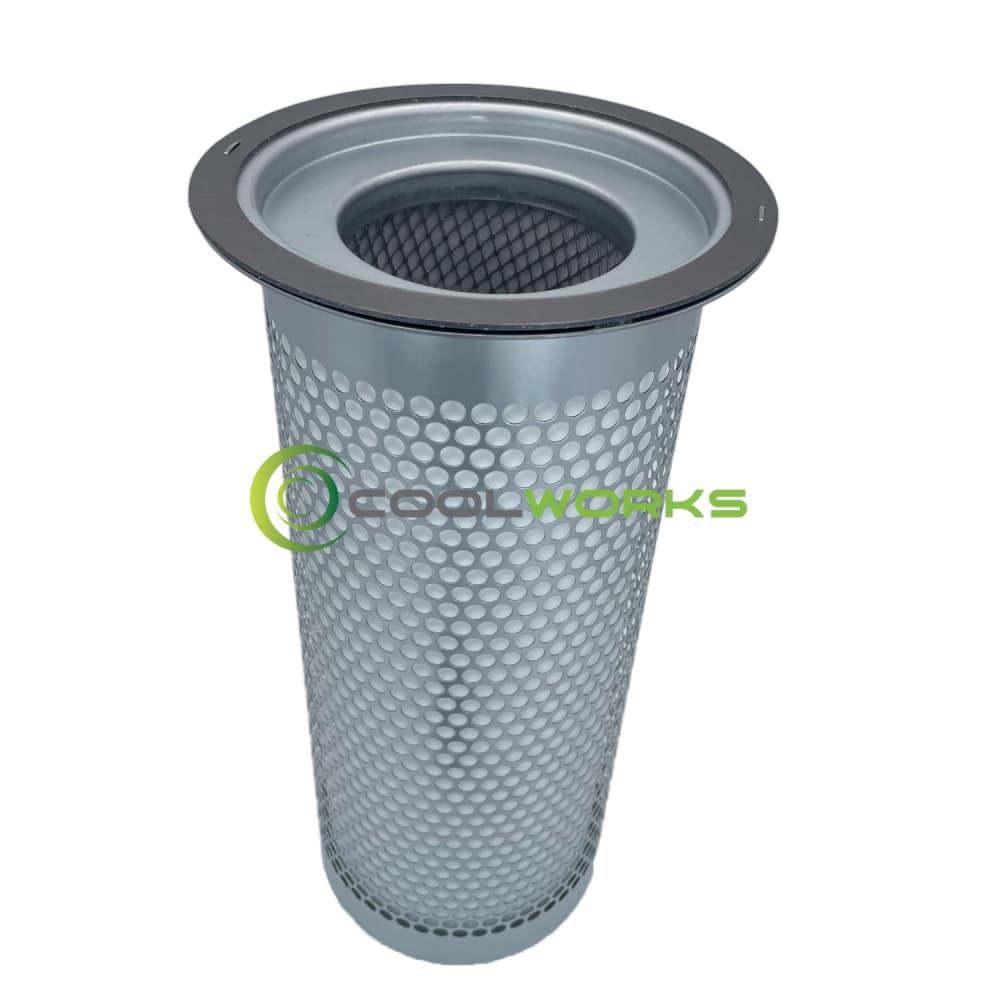

Coolworks Oil Separator KV160-057 KV465-015Order(MOQ) :
1Payment :
Please consultProduct Origin :
ChinaColor :
CustomizableShipping Port :
CNYTN;CNSHK;CHNNS;CNHPU;SHANGHAI;QINGDAO,etcLead Time :
5-7 working daysWeight :
Please consult
 |
 |
| Oil separator standard specification | ||||
| Air flow(m³/min) | OD d1(mm) | Flange d2(mm) | ID d3(mm) | Height h(mm) |
| 35 | 135 | 170 | 75 | 160 |
| 4.5 | 135 | 170 | 75 | 200 |
| 6.8 | 135 | 170 | 75 | 305 |
| 5.0 | 170 | 200 | 109 | 180 |
| 6.5 | 170 | 200 | 109 | 230 |
| 9.0 | 170 | 200 | 109 | 305 |
| 12 | 170 | 200 | 109 | 400 |
| 9.0 | 220 | 273 | 157 | 230 |
| 12 | 220 | 272 | 157 | 305 |
| 16 | 220 | 288 | 157 | 400 |
| 25 | 220 | 272 | 157 | 612 |
| 15 | 275 | 328 | 209 | 305 |
| 20 | 275 | 328 | 209 | 400 |
| 25.5 | 275 | 328 | 209 | 500 |
| 16 | 300 | 355 | 220 | 305 |
| 22 | 300 | 355 | 220 | 400 |
| 28 | 300 | 355 | 220 | 500 |
| 32 | 300 | 355 | 220 | 540 |
| 34 | 300 | 355 | 220 | 600 |
| 40 | 300 | 355 | 220 | 700 |
| 40 | 350 | 430 | 265 | 550 |
| 39 | 400 | 434 | 314 | 520 |
| 43 | 400 | 439 | 314 | 600 |
| 46.5 | 400 | 434 | 314 | 620 |
The KV160-057 and KV465-015 oil separators deliver enhanced filtration efficiency through precision engineering.
Our manufacturing process integrates quality control at each stage, from material selection to final testing, ensuring reliable performance in diverse operating conditions.
These customizable separators feature optimized designs that maintain system stability while adapting to your specific compressor requirements.
The technical team provides data-supported configuration advice, drawing from extensive application experience to recommend suitable solutions.
Contact us with your specifications to develop your ideal filtration solution.
