Item No :

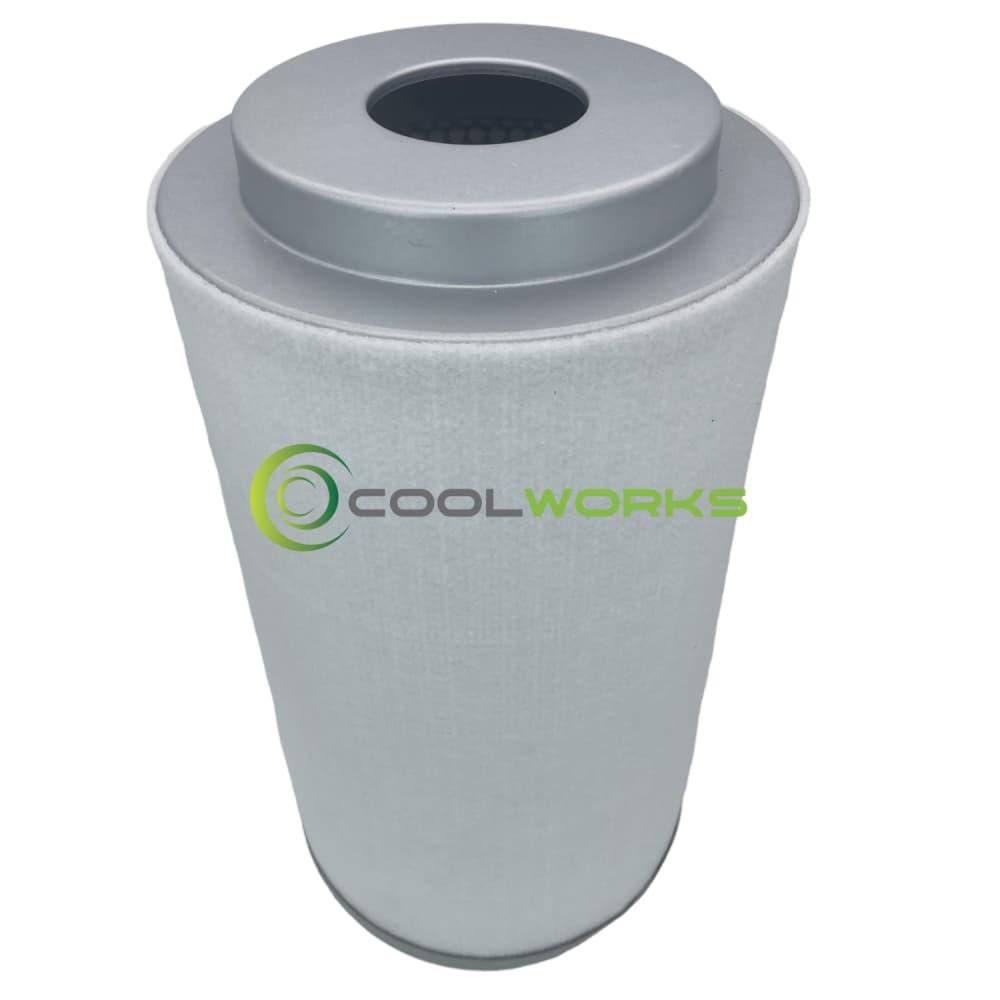

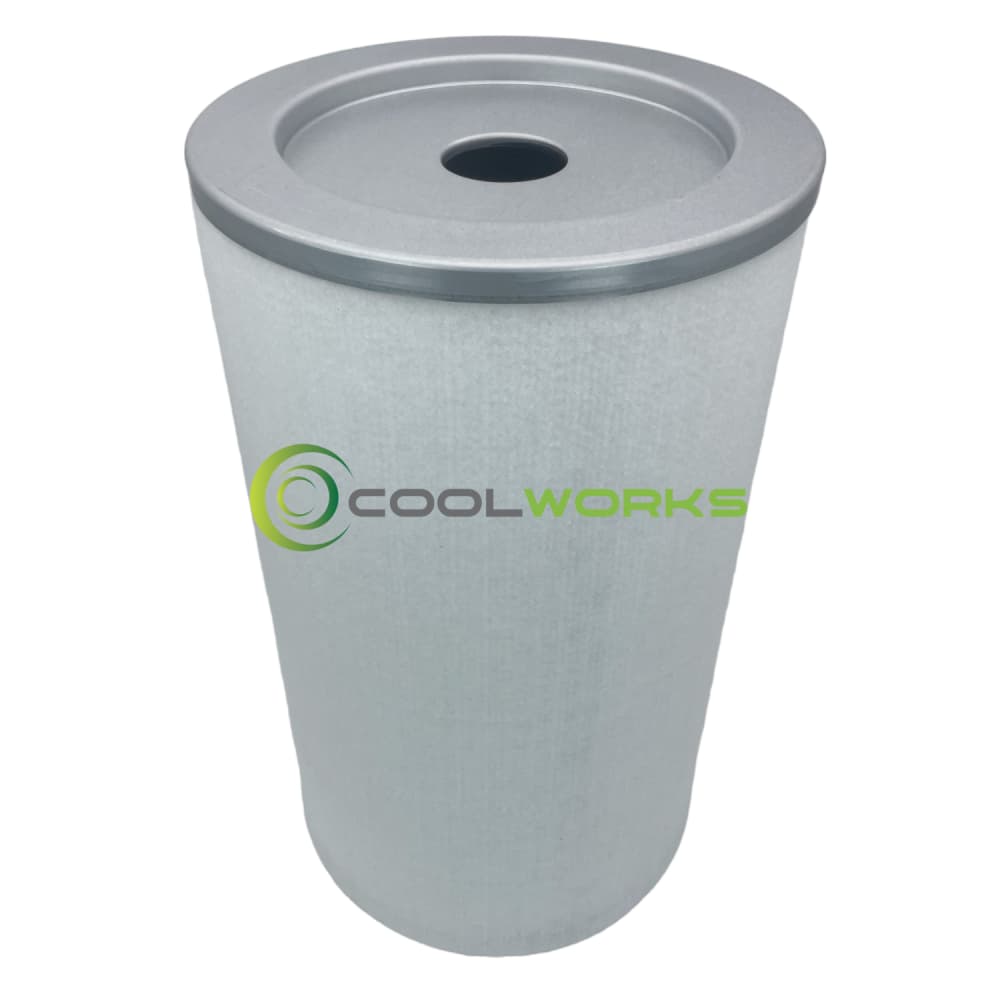

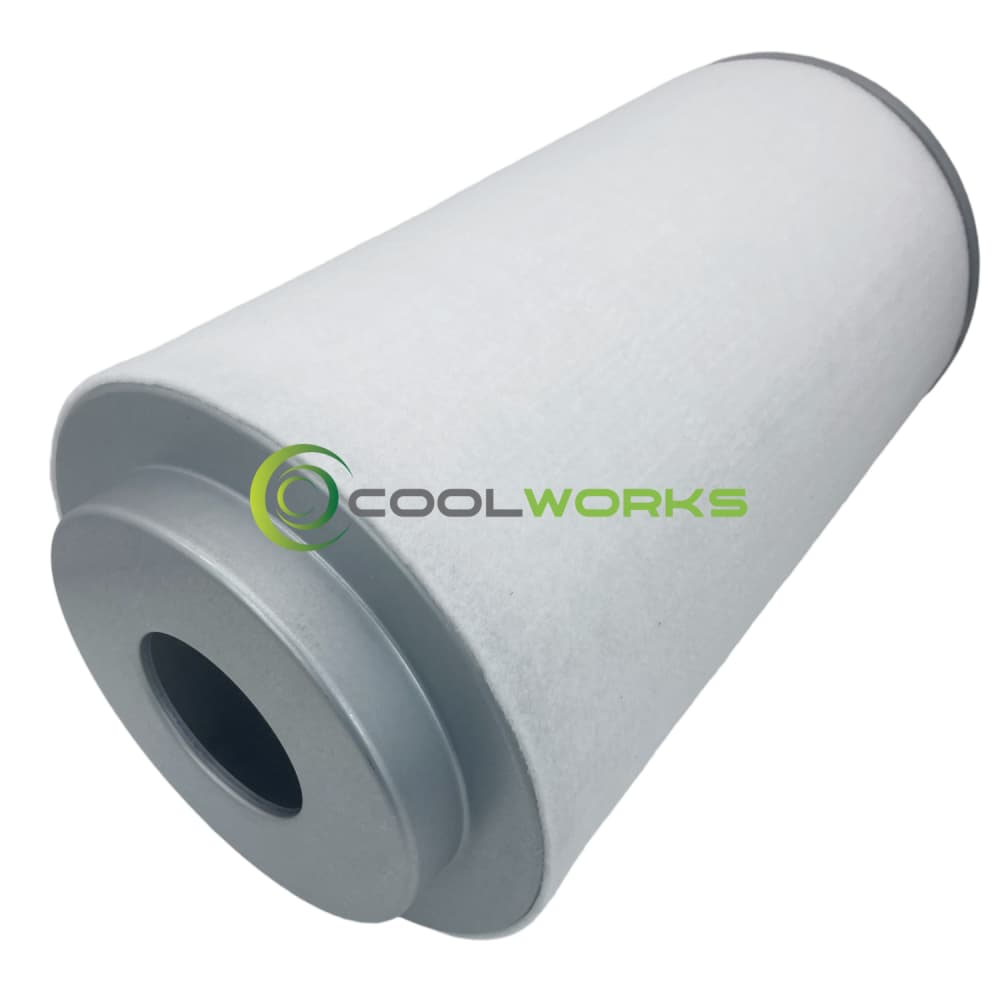

Coolworks Oil Separator 2911014802 1604032082Order(MOQ) :
1Payment :
Please consultProduct Origin :
ChinaColor :
CustomizableShipping Port :
CNYTN;CNSHK;CHNNS;CNHPU;SHANGHAI;QINGDAO,etcLead Time :
5-7 working daysWeight :
Please consult
 |
 |
| Oil separator standard specification | ||||
| Air flow(m³/min) | OD d1(mm) | Flange d2(mm) | ID d3(mm) | Height h(mm) |
| 35 | 135 | 170 | 75 | 160 |
| 4.5 | 135 | 170 | 75 | 200 |
| 6.8 | 135 | 170 | 75 | 305 |
| 5.0 | 170 | 200 | 109 | 180 |
| 6.5 | 170 | 200 | 109 | 230 |
| 9.0 | 170 | 200 | 109 | 305 |
| 12 | 170 | 200 | 109 | 400 |
| 9.0 | 220 | 273 | 157 | 230 |
| 12 | 220 | 272 | 157 | 305 |
| 16 | 220 | 288 | 157 | 400 |
| 25 | 220 | 272 | 157 | 612 |
| 15 | 275 | 328 | 209 | 305 |
| 20 | 275 | 328 | 209 | 400 |
| 25.5 | 275 | 328 | 209 | 500 |
| 16 | 300 | 355 | 220 | 305 |
| 22 | 300 | 355 | 220 | 400 |
| 28 | 300 | 355 | 220 | 500 |
| 32 | 300 | 355 | 220 | 540 |
| 34 | 300 | 355 | 220 | 600 |
| 40 | 300 | 355 | 220 | 700 |
| 40 | 350 | 430 | 265 | 550 |
| 39 | 400 | 434 | 314 | 520 |
| 43 | 400 | 439 | 314 | 600 |
| 46.5 | 400 | 434 | 314 | 620 |
The 2911014802 and 1604032082 oil separators are the result of iterative design improvements based on performance testing and field feedback.
Each design iteration focuses on enhancing filtration consistency and adaptability to various screw compressor environments.
These separators utilize a refined multi-layer structure that maintains effective oil separation while supporting stable system pressure.
The technical team helps tailor specifications to your equipment, ensuring a configuration that aligns with both operational demands and maintenance preferences.
Contact us with your specifications to develop your ideal filtration solution.
