Item No :

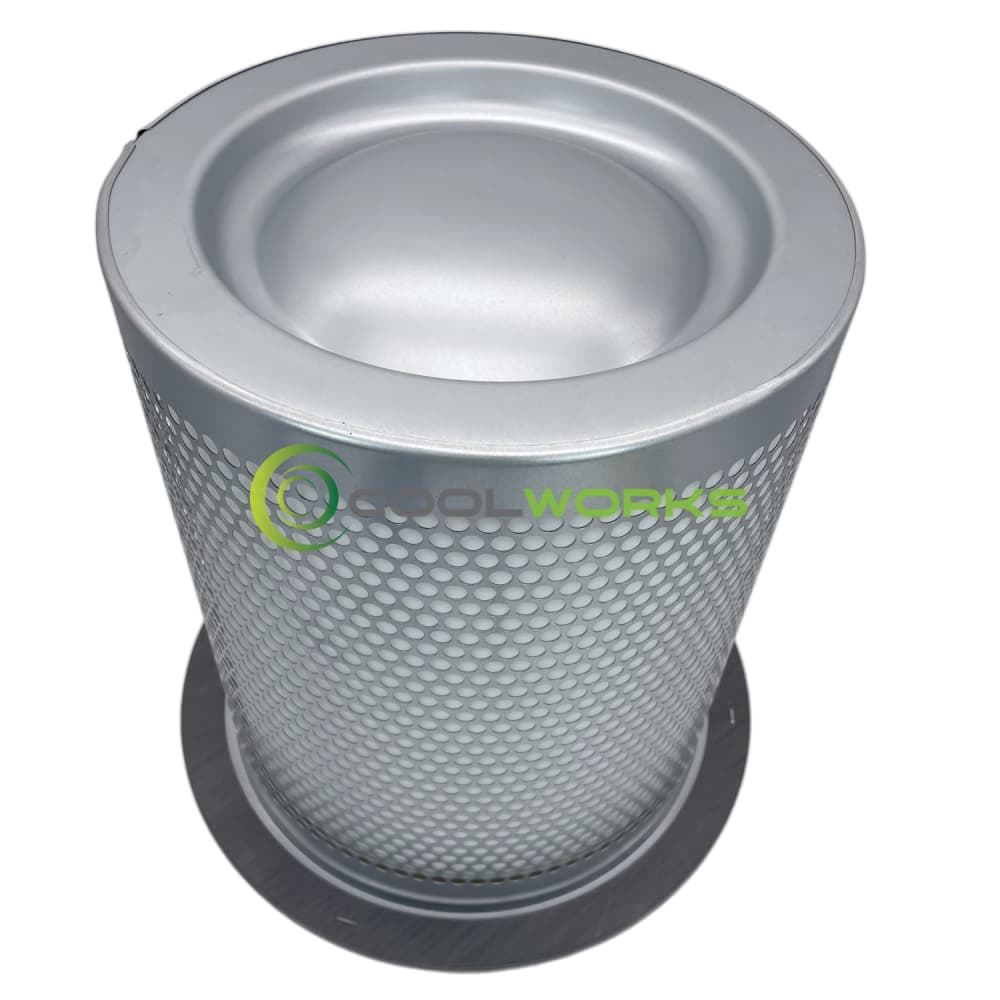

Coolworks Oil Separator 4930352151 4930353261Order(MOQ) :
1Payment :
Please consultProduct Origin :
ChinaColor :
CustomizableShipping Port :
CNYTN;CNSHK;CHNNS;CNHPU;SHANGHAI;QINGDAO,etcLead Time :
5-7 working daysWeight :
Please consult
 |
 |
| Oil separator standard specification | ||||
| Air flow(m³/min) | OD d1(mm) | Flange d2(mm) | ID d3(mm) | Height h(mm) |
| 35 | 135 | 170 | 75 | 160 |
| 4.5 | 135 | 170 | 75 | 200 |
| 6.8 | 135 | 170 | 75 | 305 |
| 5.0 | 170 | 200 | 109 | 180 |
| 6.5 | 170 | 200 | 109 | 230 |
| 9.0 | 170 | 200 | 109 | 305 |
| 12 | 170 | 200 | 109 | 400 |
| 9.0 | 220 | 273 | 157 | 230 |
| 12 | 220 | 272 | 157 | 305 |
| 16 | 220 | 288 | 157 | 400 |
| 25 | 220 | 272 | 157 | 612 |
| 15 | 275 | 328 | 209 | 305 |
| 20 | 275 | 328 | 209 | 400 |
| 25.5 | 275 | 328 | 209 | 500 |
| 16 | 300 | 355 | 220 | 305 |
| 22 | 300 | 355 | 220 | 400 |
| 28 | 300 | 355 | 220 | 500 |
| 32 | 300 | 355 | 220 | 540 |
| 34 | 300 | 355 | 220 | 600 |
| 40 | 300 | 355 | 220 | 700 |
| 40 | 350 | 430 | 265 | 550 |
| 39 | 400 | 434 | 314 | 520 |
| 43 | 400 | 439 | 314 | 600 |
| 46.5 | 400 | 434 | 314 | 620 |
The 4930352151 and 4930353261 oil separators utilize improved filtration materials developed through ongoing research and testing.
Our focus on material advancement ensures these units deliver consistent performance while allowing for flexible customization to better match your screw compressor specifications.
These separators are designed to maintain stable airflow and effective oil separation under varying operating conditions.
The technical team supports customization requests with data-driven recommendations, helping adapt the units to your specific application needs and maintenance routines.
Contact us with your specifications to develop your ideal filtration solution.
